Dongfeng Tianjin 15-cubic-meter water sprinkler truck

Our factory produces a series of greening and sanitation sprinkler vehicles. This series of products has multiple functions for greening and sanitation, mainly used for road flushing in large, medium and small cities, greening of trees, green belts and lawns, construction of roads, factories, mines and enterprises, and high-altitude building flushing. It has functions such as water sprinkling, dust suppression, high and low-position spraying, pesticide spraying, guardrail flushing, etc., and also has water transportation, drainage and emergency fire-fighting functions. Our factory has fully passed the ISO9001-2000 international quality system certification, and the products have fully passed the 3C certification. It is a well-known brand at home and abroad and one of the top 500 private enterprises in China. The after-sales service has a 5A-level certification.

features & advantages

  • Full brand coverage and full tonnage matrix - meeting the needs of diverse scenarios.

    Complete brand portfolio: Deeply integrating chassis brand resources of first-tier manufacturers Flexible tonnage: Covering a full range of tank capacities from 2 to 30 tons.

  • Full-process customization - Your needs are accurately implemented.

    Tank configuration upgrade: Selectable materials, reinforced structure, and expanded functions. The pipeline system is optimized and thickened.

  • Global Compliance Adaptation — Quality Trust Across Borders

    Policy Customization: Provide emission certification adaptation according to the regulations of different countries/regions to meet the safety requirements of special regions.

  • Intelligent Ergonomics — Efficient Control in the Cab

    Pneumatic Control System: The vehicle's full-range sprinkling functions (front flush, rear spray, side spray, water cannon) are integrated into the pneumatic control panel in the cab, allowing one-touch switching of operation modes without requiring parking,

  • National Best-Selling Brand — Quality Witnessed by an Annual Sales Volume of 20,000 Units

    Market Validation: With an annual sales volume of over 20,000 units and cumulative service for more than 100,000 customers, the market share has remained among the top three in the industry.

  • Hardcore Performance Parameters — Dual Optimal Solutions for Efficiency and Reliability

    It has a strong power system, high sprinkling efficiency, high safety, and low maintenance cost.

Product Description

Main Technical Parameters:
Item Parameters
Product Name Dongfeng Tianjin 15-cubic-meter Greening Sprinkler Truck
Chassis Model DFH
Volume Actual volume: 15 m³
(Tank dimensions: 5000×2300×1450 mm)
Gross Mass 18,000 kg
Curb Mass 7,705 kg
Rated Load Mass 10,165 kg / 10,100 kg
Vehicle Dimensions 9150×2520×3250 mm
Wheelbase 4,700 mm
Engine Specifications Model Manufacturer Displacement (cc) Power (kW) Horsepower
B6.2NS6B210 Dongfeng Cummins Engine Co., Ltd. 6200 154 210
B6.2NS6B230 Dongfeng Cummins Engine Co., Ltd. 6200 169 230
Chassis Configuration – 210 hp Cummins Engine: 4700 mm wheelbase, D530 cab with semi-flat roof, U-shaped after-treatment system, DF6S900 gearbox, gear ratios 7.967/0.845, front/rear axles: 4.5t/9t single reduction, leaf springs: 8/10+8, frame: 250×80×7+4 mm, air conditioning + central control (non-remote), 160L steel fuel tank, main reduction ratio 5.286, tires: 10.00R20 18PR, power take-off interface included.
– 230 hp Cummins Engine: U-shaped after-treatment system, Fast 8-speed gearbox, front/rear axles: 4.5t/9t single reduction, leaf springs: 8/10+8, frame: 250×80×7+4 mm, air conditioning + central control (non-remote), 160L steel fuel tank, main reduction ratio 5.286, tires: 10.00R20 18PR
Special Sprinkler Functions Front flush, rear spray, side spray, rear work platform with high-pressure greening sprinkler cannon (adjustable spray patterns: straight jet, heavy rain, moderate rain, drizzle; continuously adjustable, maximum range: 30 meters). Equipped with high-power dedicated sprinkler pump, fire hose connector, gravity flow valve, self-priming function, and filter screen. Suction range ≥6 meters, sprinkling width ≥16 meters, spray range ≥30 meters.
Upper Tank and Components – Material: Tank made of Q235 steel, partition thickness: 3 mm, tank body thickness: 4 mm, head thickness: 5 mm.
– Large-diameter through ball valves, aluminum alloy three-way pipes, thickened main pipeline (76 mm).
– Standard Pipe Fittings: Cast steel elbow tees, aluminum alloy flange tees, one-piece die-cast molding (no welding seams to prevent leakage), standardized design for high interchangeability and easy maintenance. Aluminum alloy material is lightweight, aesthetically pleasing, and practical, enhancing product quality.
– Other Components: Rear spray nozzle, stainless steel ball valve, S-type new high-pressure water cannon.
– Perforated Plate Platform: Thickened perforated plate for improved anti-slip performance, no water accumulation, optimized structure formed by stamping.
Air-Blast Sprayer Parameters (Optional) Power: 2.2 kW, three-cylinder piston pump, water pump power: 1.5 kW, working pressure: 1.0–3.5 MPa, spray flow: 20 L/min, elevation angle: -5° to 60° (remote control), mist particle size: 50–150 μm, horizontal range (calm wind): 30 meters, 16 stainless steel nozzles, 360° rotation (manual or remote control). Fan base dimensions (reference): 1050×550×1700 mm, generator dimensions (reference): 800×600×650 mm (actual dimensions subject to physical products).

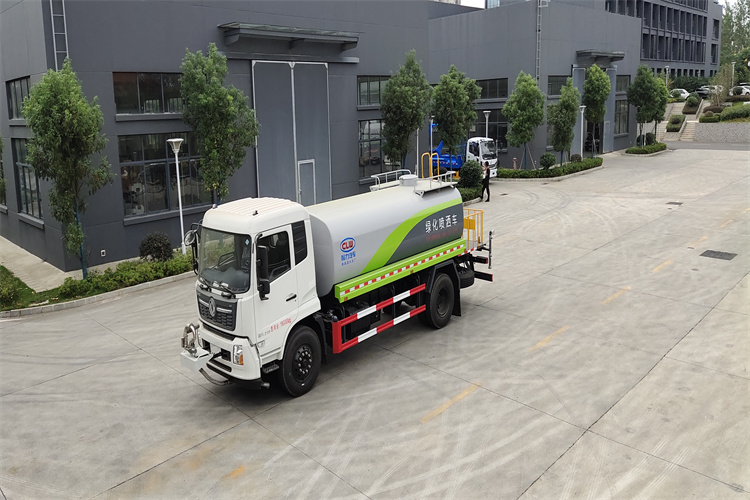

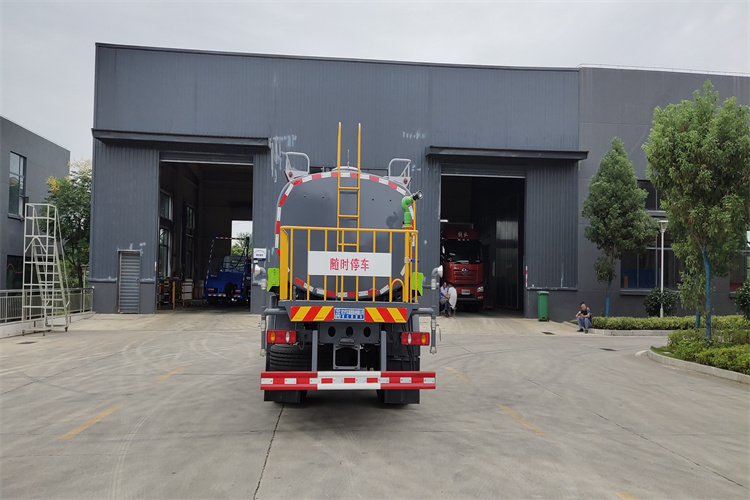

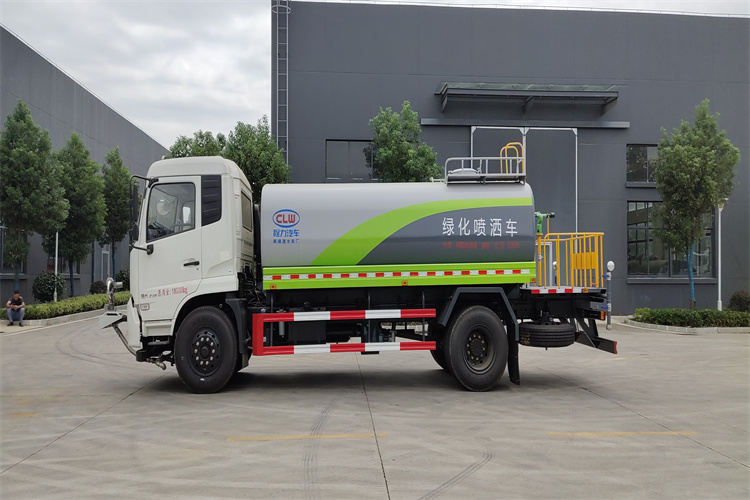

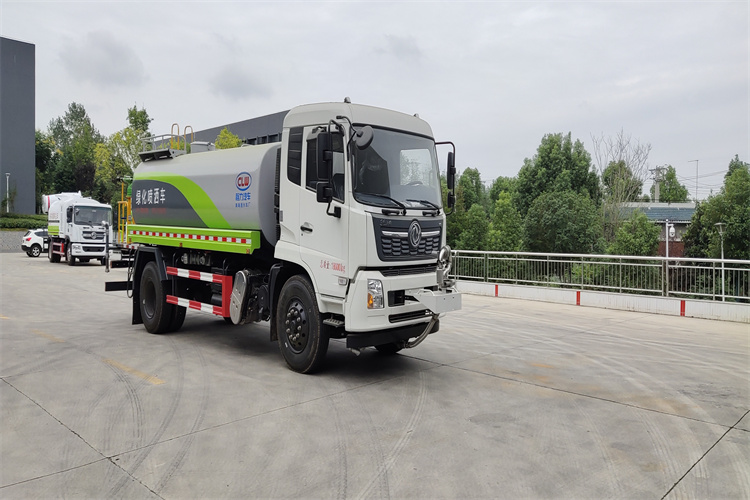

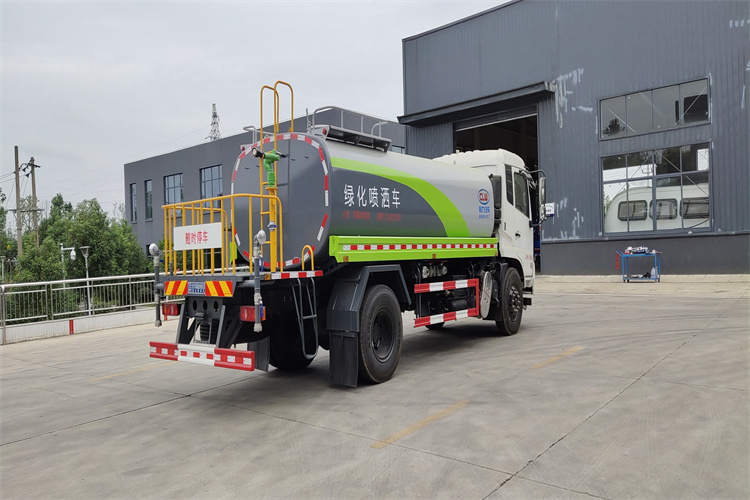

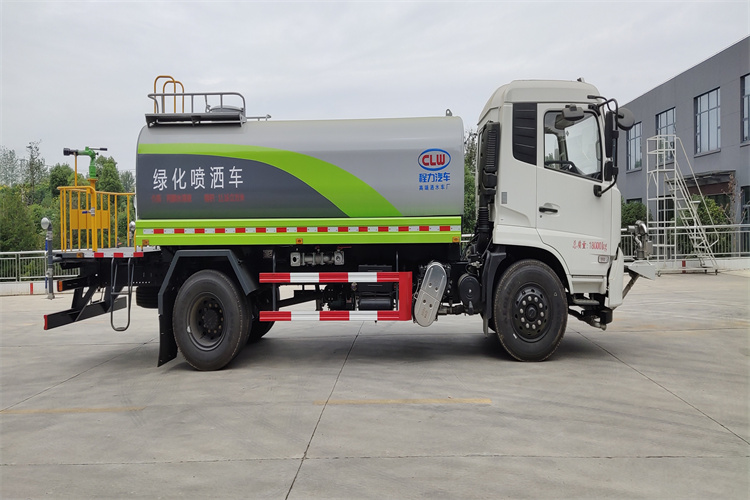

Product gallery
